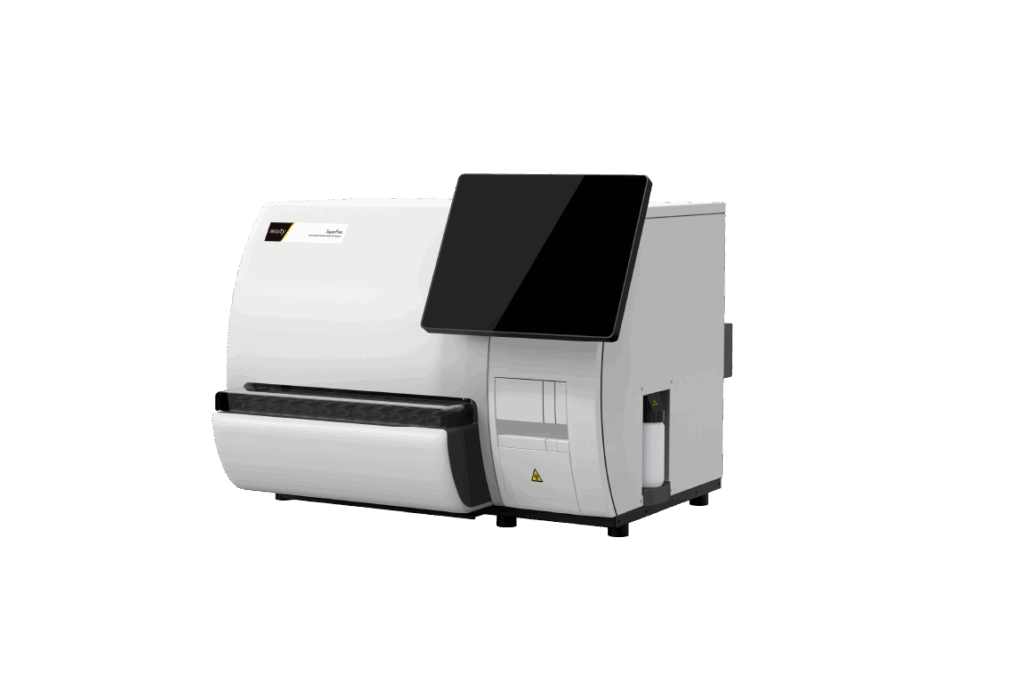

SuperFlex Cartridge-based Fully Automatic Chemiluminescence Immunoassay Analyzer

SuperFlex Cartridge-based
Fully Automatic Chemiluminescence Immunoassay Analyzer

Product Introduction

SuperFlex is a fully automatic chemiluminescence Immunoassay analyzer (POCT) utilizing the acridinium ester direct chemiluminescence method. It features 24 sample positions and 12 independent reaction channels, with a single-machine throughput of up to 60 tests per hour. The system delivers initial results in as fast as 5 minutes, and its single-use reagents prevent wastage. Moreover, it employs a cartridge-based CLIA (Chemiluminescence Immunoassay) approach, eliminating the need to consider the opened stability of reagents.

Product Features

• Measurement Principle

Acridinium ester-CLIA

• Throughput

Up to 60 Tests/hour

• Channels

12 independent channels

• Reagents

Cartridge based

• First Result Report Time

5 min (CRP)

• Sample handling

Primary sample tube

• Sample position

• Sample loading

Disposable pipette Tips

• Sample Type

Serum, plasma, whole blood

• Barcode

Automated scanning

• Minimum sample volume

20ul

• Screen

15 inch HD touch screen

• Dimension

792*670*615mm

• Weight

78Kg

Application Area

Common clinical applications include the detection of Cardiac and Inflammation markers, Infectious Disease, Thyroid, Diabetes and Tumor reagents.

Cardiac markers

Inflammation markers

Infectious Disease test

Thyroid marker

Diabetes test

Tumor marker

Complementary Product

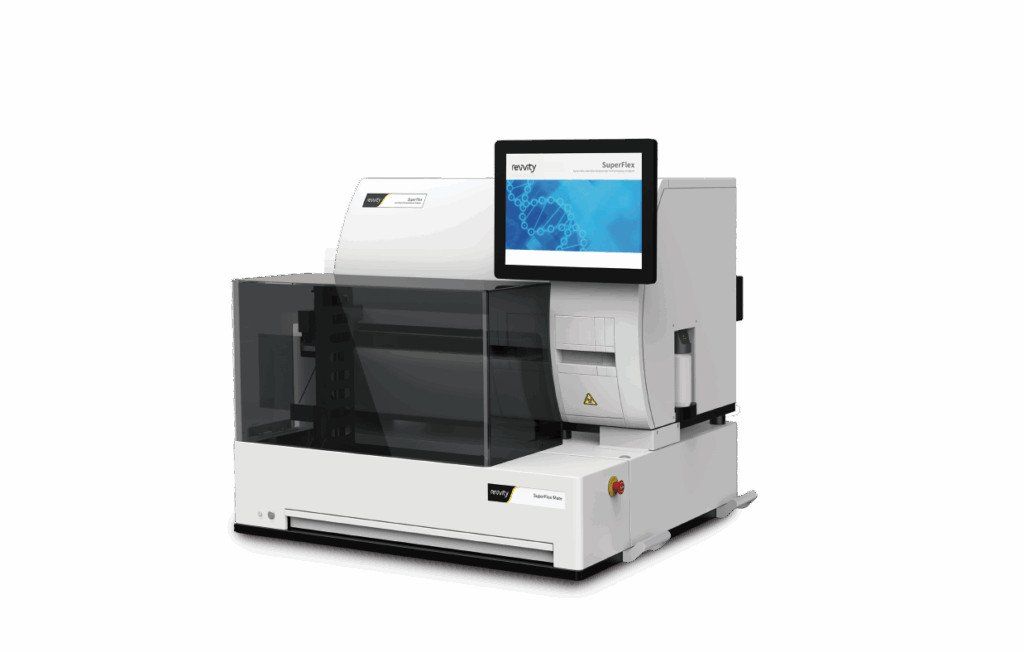

SuperFlex Mate — Fully Automated Reagent Strip Conveyor System

SuperFlex Mate is a fully automated reagent strip conveyor system with 90 reagent positions, enabling automatic loading and unloading of reagent strips. It supports one-touch operation for batch sample processing, making it simpler and easier.

• Dimension

Increase by 200mm(L)/260mm(W)/190mm(H)

• Reagents position

90 (auto-loading function)

• Walk-away time

90 mins

• Sampling

Continuous automatic sampling

Reagent List

• Inflammation reagents

PCT#

All in one CRP#

IL-6

SAA

• Cardiac reagents

Hs-cTnl#

MYO#

CK-MB#

NT-proBNP#

D-Dimer#

• Thyroid reagents

FT4

FT3

TSH

• Infectious Disease reagents

HBsAg

Anti-HBs

HBeAg

Anti-HBc

Anti-HBe

HIV Ag/Ab Combo

Anti-HCV

Syphilis TP

# Received CE IVDR certificate

—— Available in China, Indonesia,Philippines and Latin America ——
